4N Series

4N Series
Features & Benefits Description
Power range

0.5 – 6.0 HP

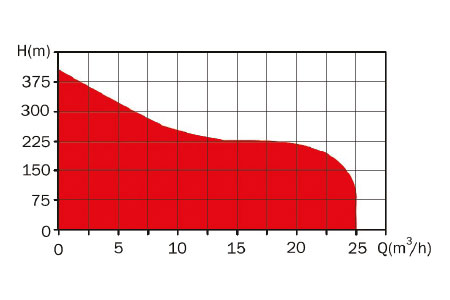

Flow rate

max. 24 m3/hr

Head

max. 370 m

Liquid Temperature

max. +33°C

Operating Pressure

max. 44 bar

4N Series

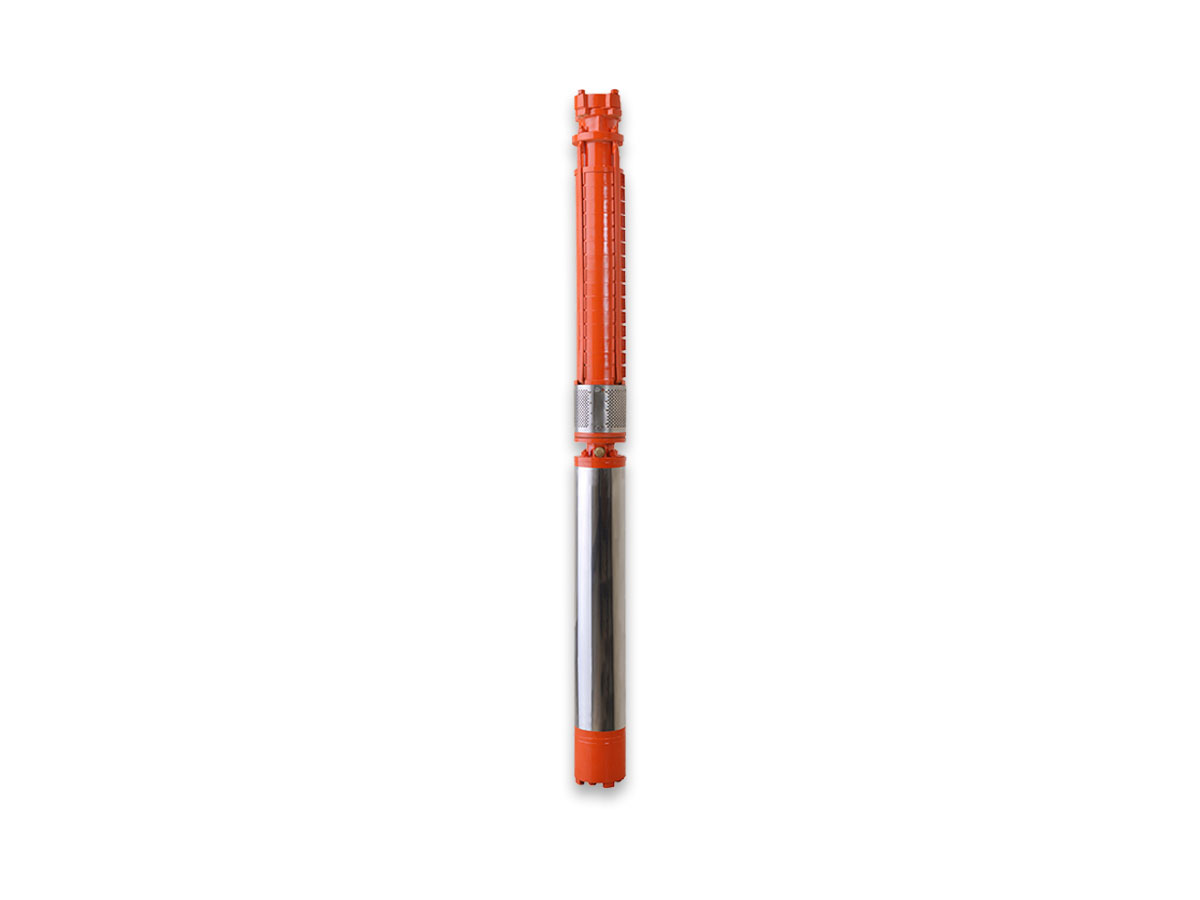

Borehole submersible pumps for 4" (100mm) deep wells with radial flow Impellers coupled with our high precision motors give splendid performance. Improvised diffuser design gives better discharge properties. The noryl and hydraulic materials prevent the impellers from clogging even after long stationary periods.

  • SS Sleeve increases the life span.
  • Easy to dismantle, rewind and install.
  • Valve disc designed to protect the pump from excessive hydro static pressure.
  • Improvised diffuser design for high discharge.

Applications

  • Agriculture
  • Domestic Building Services
  • Public Utilities
