HOT Series

HOT Series
Features & Benefits Description
Power range

0.5 – 1.0 HP

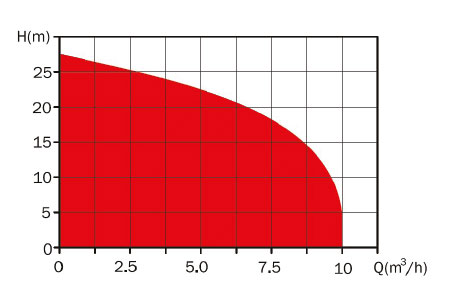

Flow rate

max. 10 m3/hr


max. 28 m

Liquid Temperature

max. +50°C

Operating Pressure

max. 3.5 bar

HOT Series

Horizontal Open-well Tiny Submersible pumps are designed to work in small Open-wells. Specially designed sleek compact and light weight impeller gives high discharge properties.

• Easy to handle and install.
• Easy to dismantle and Rewind.
• Low voltage operation.
• Both vertical and horizontal installation is possible.
• Rotor made of 99.9 % EC grade Copper.

Applications :

• Domestic Building Services
• Commercial Building Services
